Visualizations and dashboards

Data Science & AI Workbench makes it easy for you to create and share interactive data visualizations, live notebooks or machine learning models built using popular libraries such as Bokeh and HoloViews.

To get you started quickly, Workbench provides sample projects of Bokeh applications for clustering and cross filtering data. There are also several examples of Workbench projects that use HoloViz here.

Follow these steps to create an interactive plot:

1. From the Projects view, select Create + > New Project and create a project from the Anaconda 3.6 (v5.0.1) template:

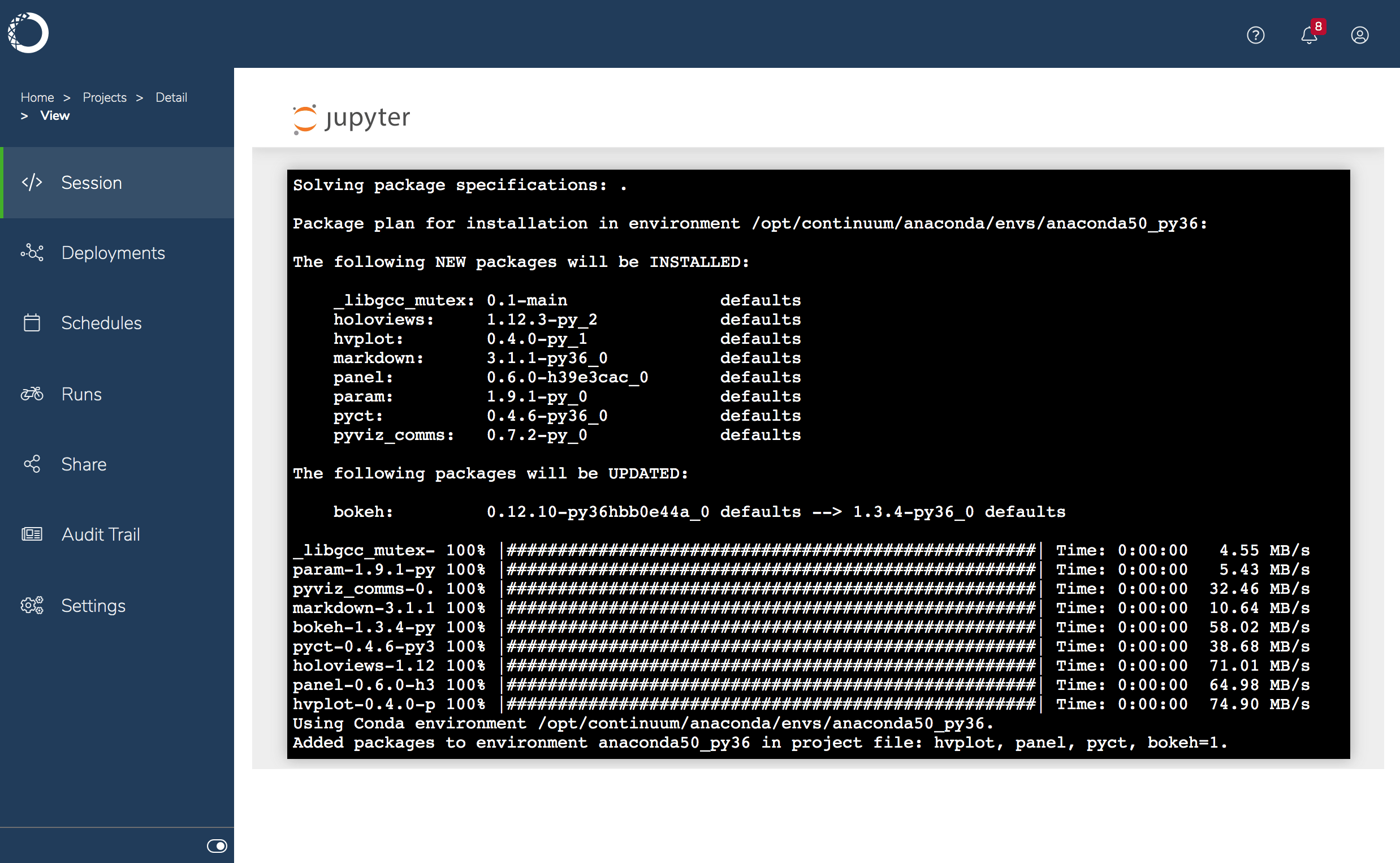

2. Open the project in a session, select New > Terminal to open a terminal, and run the following command to install packages for hvplot and panel:

   anaconda-project add-packages hvplot panel


3. Select New > Python 3 to create a new notebook, rename it tips.ipynb, and add the following code to create an interactive plot:

   import pandas as pd
   import hvplot.pandas
   import panel

   panel.extension()

   df = pd.read_csv('http://bit.ly/tips-csv')
   p = df.hvplot.scatter(x='total_bill', y='tip', hover_cols=['sex','day','size'])
   pn.panel(p).servable()


   In this example, the data is being read from the Internet. Alternatively, you could download the .csv and upload it to the project.

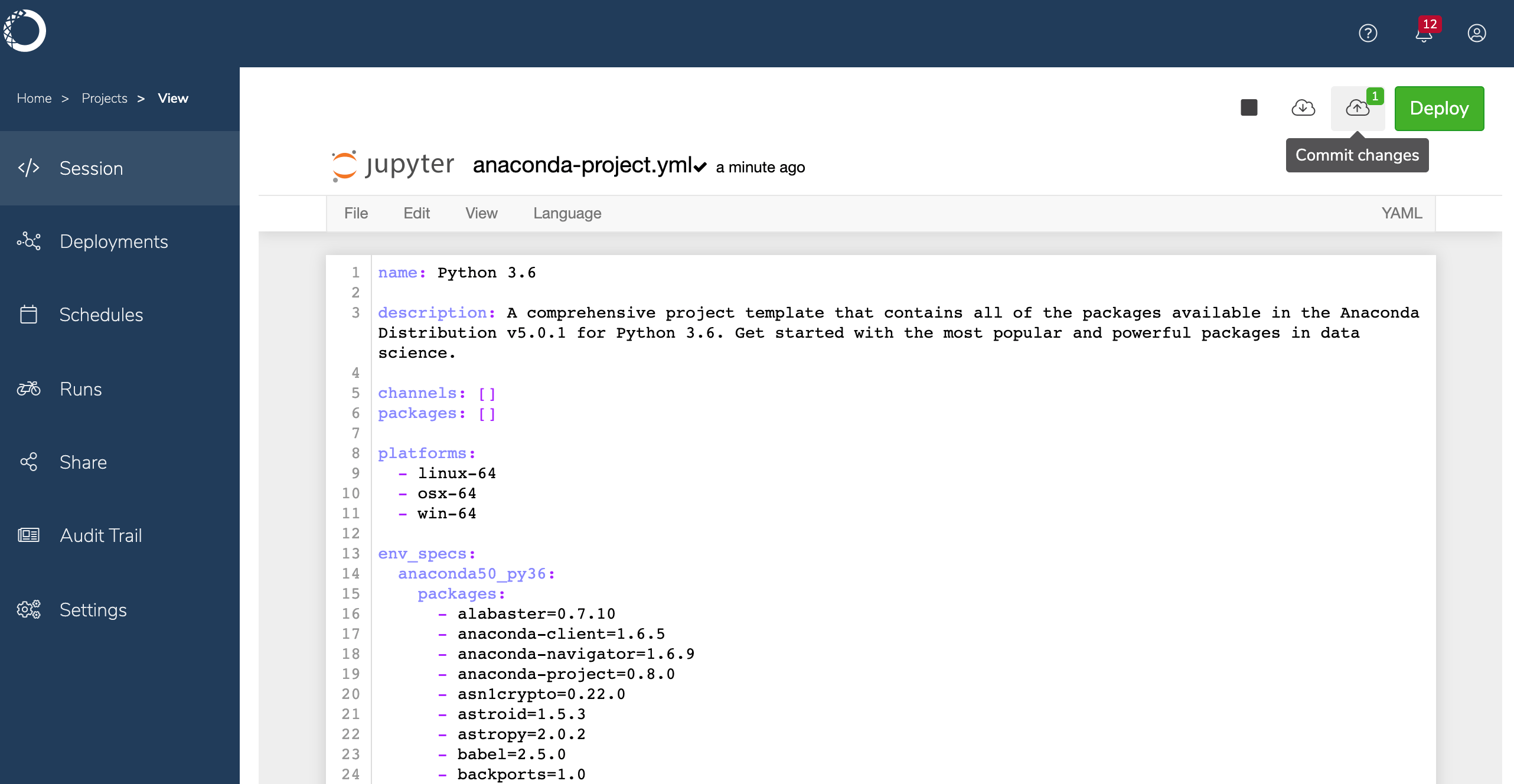

4. Open the project’s anaconda-project.yml file, and add the following lines after the description. This is the deployment command that Workbench will use when you deploy the notebook

   commands:
     scatter-plot:
         unix: panel serve tips.ipynb
         supports_http_options: True

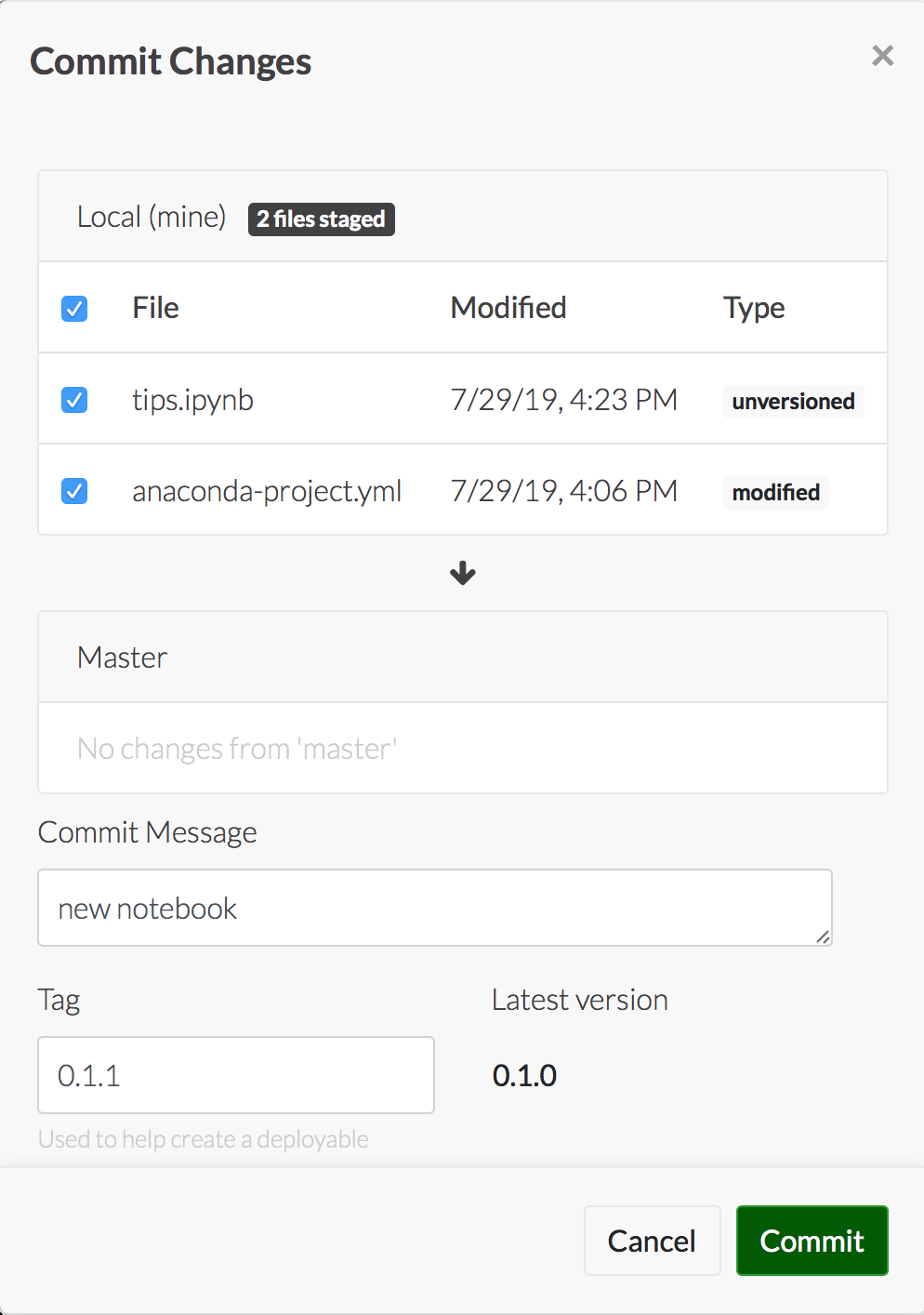

5. [Save and commit your changes](Save and commit your changes.

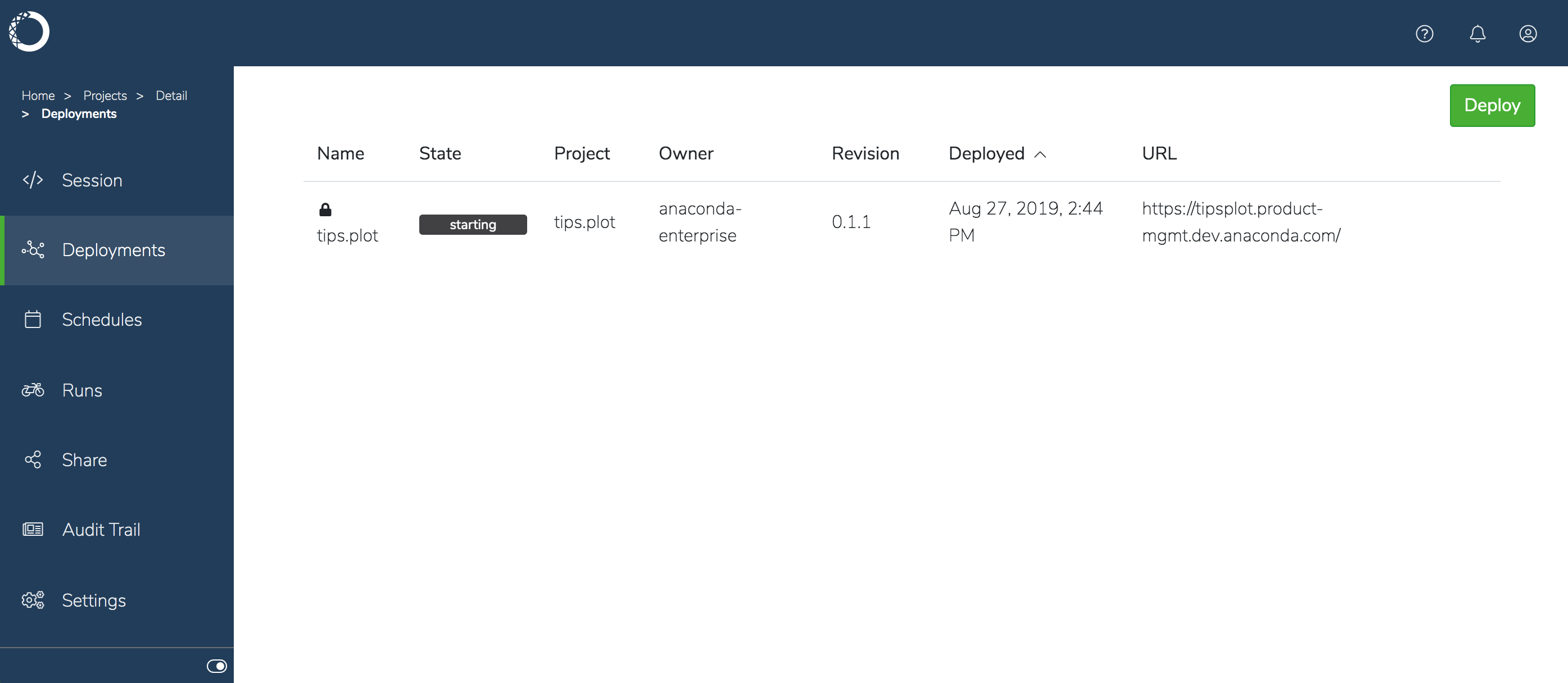

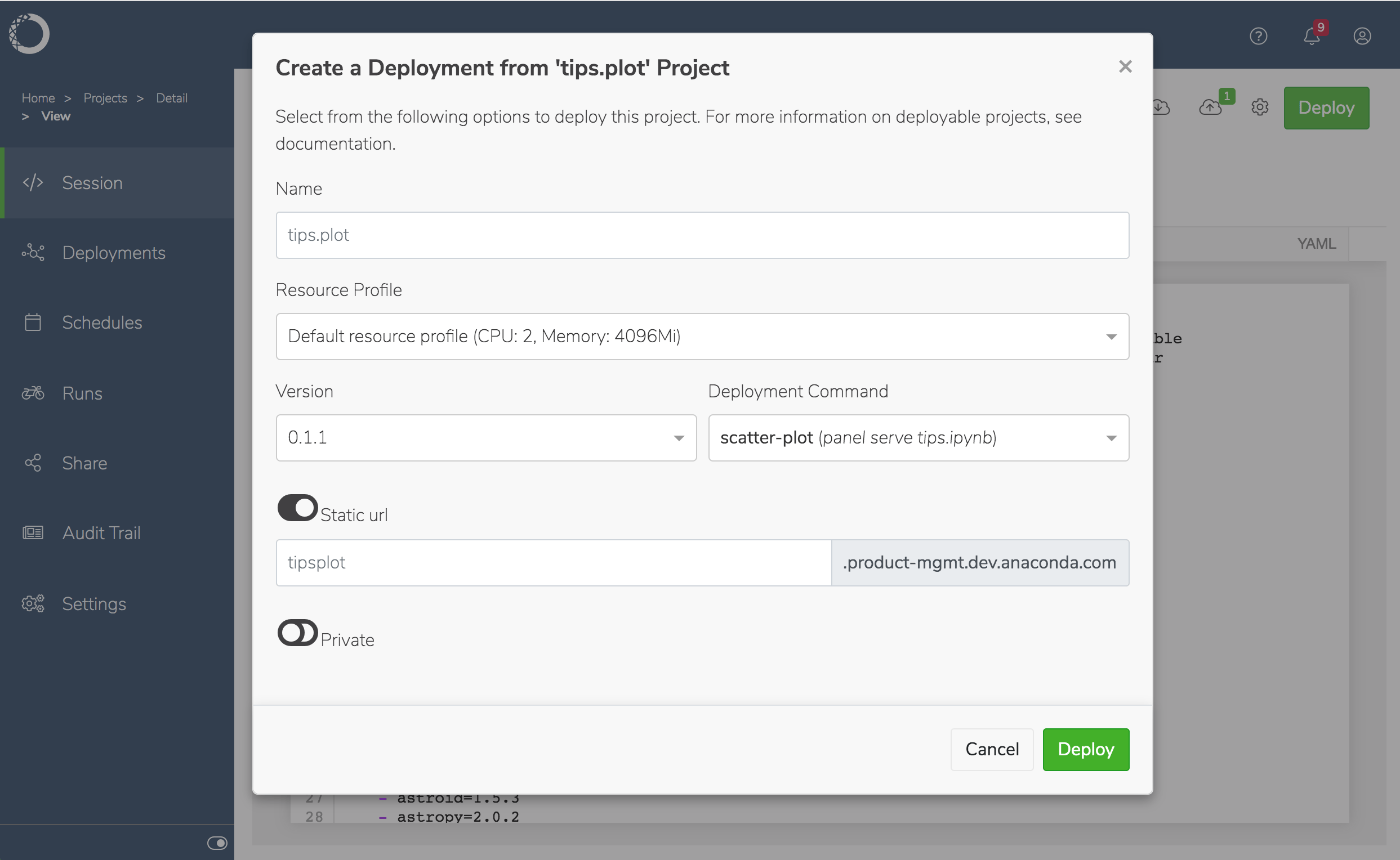

6. Now you’re ready to deploy the project.

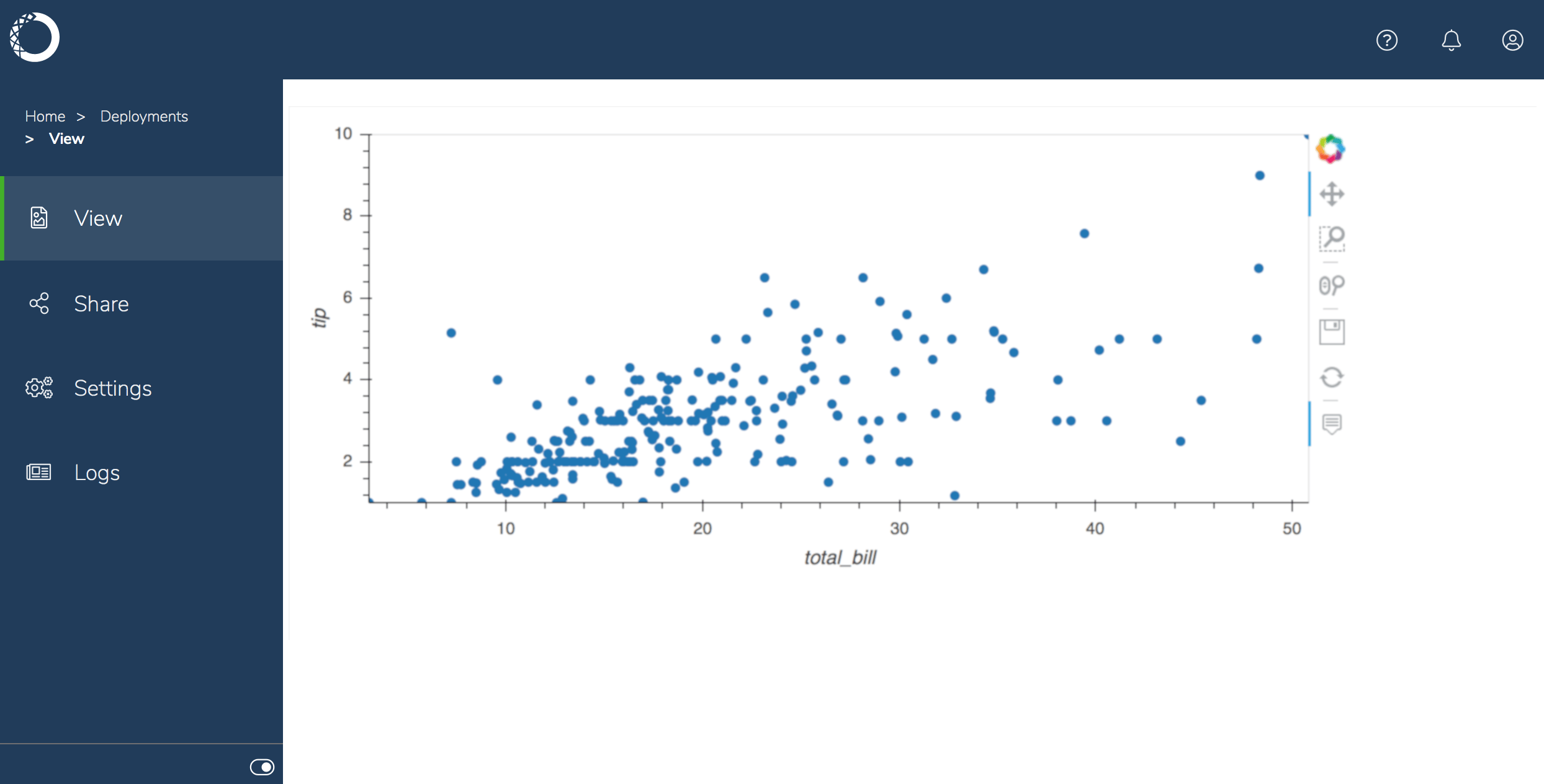

To interact with the notebook—executing its cells without making changes to it—click the deployment’s name.

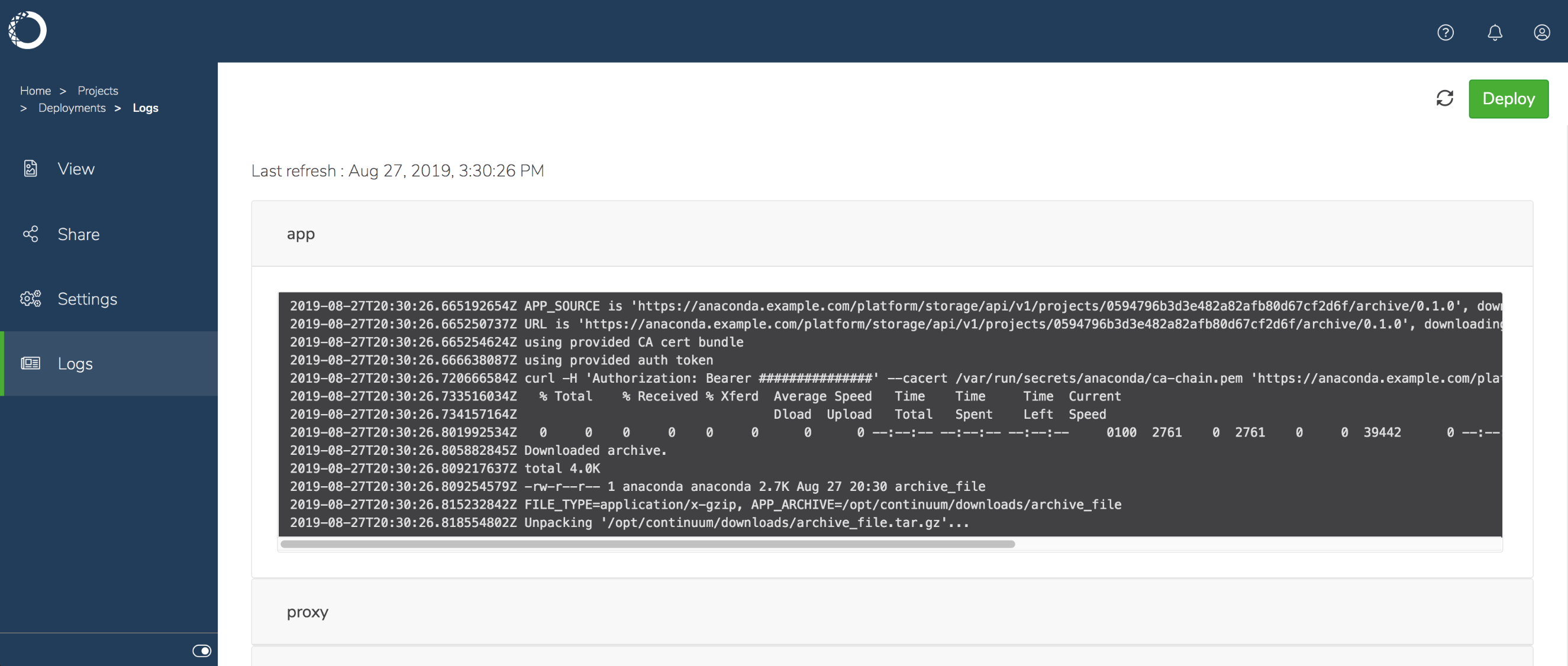

To view and monitor the logs for the deployment while it’s running, click Logs in the left menu. The app section records the initialization steps and any messages printed to standard output by the command used in your project.

You can also share the deployment with others.
